Quick Donning Immersion Coverall

MSD720 02

CALL for Quote

The Mustang Survival MSD720 Quick-Donning Immersion Coverall is an excellent blend of ergonomic design and emergency hazards protection. It is conveniently stored, easily and quickly donned and very effective in protecting the user in the event of cold-water immersion.

The MSD720 02 is an insulated, hypothermia protective, flame and heat protective, quick-donning garment intended for use by aircrew and passengers operating over water. The suit packs into a small nylon case for convenient storage on-board the aircraft. The suit is specifically engineered for long-range maritime patrol and transport aircraft, but also performs well as a rotary wing aircraft passenger suit or as a land survival suit. The MSD720 02 is constructed from inherently buoyant, 2mm waterproof neoprene that is resistant to petroleum. This material provides excellent fire and flame protection as well as thermal insulating performance against extreme heat or cold.

The MSD720 02 is a one-piece coverall, designed for compatibility with lifejackets. It is fitted with a horizontal, “across-the-chest” waterproof entry zipper for easy self-donning. The fitting of high stretch, soft latex seals at the neck and wrists, facilitates the watertight design. Seals are replaceable by qualified technicians at the unit level, or the suit may be returned to Mustang Survival for repairs.

The insulated three finger thermal protective gloves are easily accessible in the storage pockets on the sleeves. The glove design provides for easy handling of survival equipment, personal gear, and boarding of rescue boats and life rafts. There is an insulated thermal protective hood stored in the thigh pocket for minimizing heat loss through the head and protecting against adverse weather and cold seas. The gloves and hood are fitted with adjustable straps and are secured to the suit with tethering lines.

A close fitting suit provides enhanced mobility and the straps at the waist and ankles are easily adjusted with either hand to gather in excess suit material. Integrated boots that accommodate regular footwear aid quick donning.

The compact size of the stowed suit is maintained with the nylon carry case’s three circumferential suppression straps. It also has a drawstring closure, carry strap and clearly marked donning instructions.

Mustang has a long history of working closely with the military developing survival apparel solutions that offer superior performance and comfort.

Available Colors

MSD720 quick donning immersion coverall suit red Red

MSD720 02

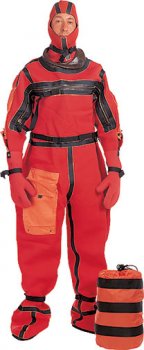

MSD720 quick donning immersion coverall suit

Mustang Survival Gear brought to you by www.machovec.com
MATERIALS

A closed cell expanded neoprene laminated to a stretch nylon facing on front and back provides suit insulation. The neoprene insulation is buoyant, waterproof, and resistant to fire, hydrostatic compression, petroleum, oils, and lubricants. The nylon facing provides resistance to abrasion and puncture, and allows for easier donning. Foot soles are available in soft textured neoprene, or rigid non-slip for passenger issue and regular use.

HYPOTHERMIA PROTECTION

The quick-donning immersion coverall is an insulated, watertight dry suit. When tested on a thermally instrumented manikin worn over standard clothing, the suit achieves thermal insulation of 0.62 immersed Clo. A benefit of the insulated dry suit is that thermal protection is only marginally diminished in the event of limited water ingress.

FLOTATION

The total inherent buoyancy of the MSD720 02 is dependent on the insulation thickness. The 2 mm neoprene suit provides 62 Newtons (14 lbs.). This amount of buoyancy is well within the maximum limit established by helicopter passenger suit standards of 156 Newtons (35 lbs.). This level of buoyancy does not inhibit the escape of suit wearers from an immersed helicopter.

Features

  • Standard 2mm neoprene suit packs into its small nylon case for convenient storage on-board aircraft
  • Specifically engineered for use in long range maritime patrol and transport aircraft, but also performs well as a helicopter passenger suit
  • It is fitted with a horizontal across-the-chest waterproof entry zipper for easy self-donning
  • High stretch, soft latex seals at the neck and wrists
  • Seals are replaceable by technicians at the unit level
  • Insulated, 3 finger thermal protective gloves are provided in readily accessible storage pockets on the sleeves
  • An insulated thermal protective hood, stored in the thigh pocket, can be donned to minimize heat loss
  • Adjustable straps at the waist and ankles gather in excess suit material for a close fit
  • Integrated boots will accommodate regular footwear
  • The carry case assists in maintaining the compact size of the stowed suit with three circumferential suppression straps
  • Replacement 3 finger thermal protective mitts MA7102
  • 14 lbs effective buoyancy offers emergency flotation while remaining within the maximum 35 lbs limit according to helicopter passenger suit standards

NSN 8475-21-905-7960
CAGE/NSCM/FSC 37463

Download MSD720 02 Specification Sheet

The MSD720 02 Specification Sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Download MSD720 02 Owner Manual

The MSD720 02 Owner Manual is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Mustang Survival Warranty and Repair Information

The Mustang Survival Warranty and Repair information sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Catalogs

2016 Mustang Survival Product Guide

2016 Product Guide

2016 Mustang Survival Public safety Product Guide

2016 Public Safety Catalog

2016 Mustang Survival Military Product Guide

2016 Military Catalog

2016 Mustang Survival Range Book

2016 Range Book

For hard copy catalogs contact us at 763-263-9835. To download, right click the image and select "Save Link As".

The catalogs are pdf files. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE
