CMP Hydra Grapple

Rotator Hydra-Grapple

Made in the USA!

RELIABILITY

Exceptional product reliability is serious business at CMP Attachments. They strive to build their grapples with the highest quality materials available. All their products that meet the dirt are built with AR400 steel with a tensile strength up to 177,000 lbs and a Rockwell hardness of 440. Top of the line yield strength sets CMP Attachments grapples apart from their competitors when it comes to being able to depend on your grapple to stay busy in the field.

INNOVATION

CMP Attachments grapples offer innovative solutions for your construction needs. The superbly engineered features allow you to work within budget constraints while enjoying the highest quality attachments available. Dual rotation motors provide greater rotational force and reliability, bolt-on cutting edges offer unparalled versitality and uptime, standard lock valves grab and hold objects, and an electronic control valve option eliminates the need for expensive secondary auxiliary hydraulics for excavators.

INCREASE PROFITS

Not only will you enjoy a great product from CMP Attachments, but they also ensure you will enjoy greater profitability. The torque rotation on their grapples exceeds twice the rotation torque of competitor grapples. Lock valves on all cylinders mean hydraulics are not needed after clamping to objects which allows a return to full excavator speed. This speed boosts productivity, inhibits exhaustive fuel consumption, and reduces heat exposure to hydraulic systems which can result in costly repairs and down time.


To order call 763-263-9835 or email Jay to obtain a freight quote. Prices do not include freight which is determined upon delivery location verification. Usually ships in 4-8 weeks upon order.

Hydra Grapple

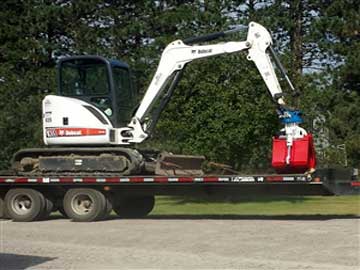

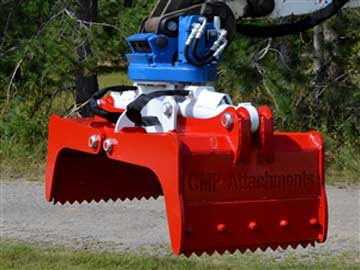

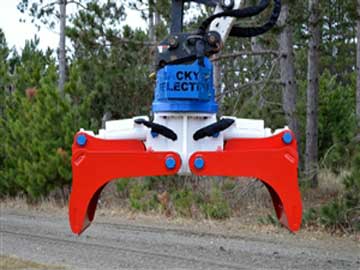

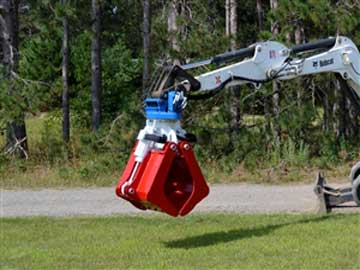

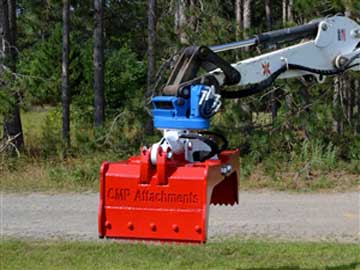

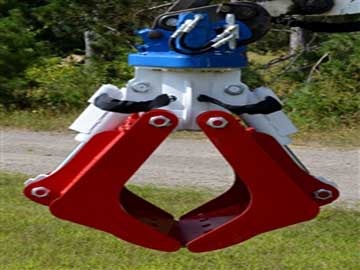

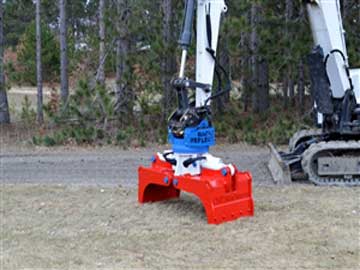

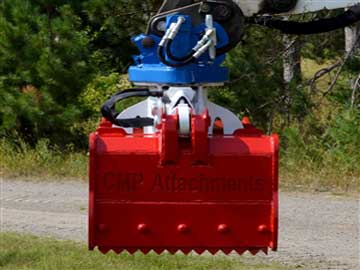

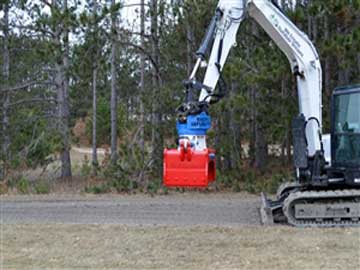

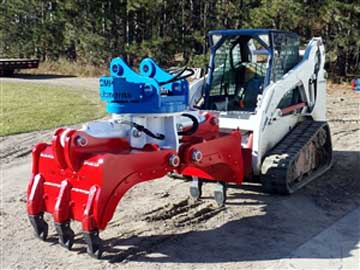

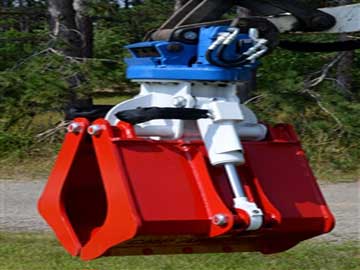

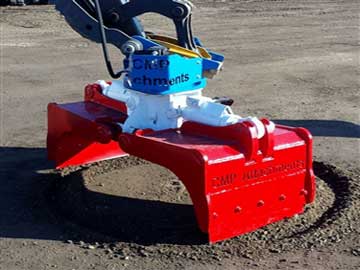

CMP Attachments hydra grapple for excavators

CMP Attachments hydragrapple for excavator

CMP Attachments product brought to you by www.machovec.com
PinIt Hydra Grapple

Features

  • Rugged heavy duty design provides unsurpassed durability and longevity
  • Dual Eaton rotational drive motors option on models CMPHG111, CMPHG141 and CMPHG201, provide unmatched rotational forces
  • Eaton motors have built in cross reliefs which serves as a cushion when stopping rotation under load
  • Heavy Duty construction utilizing durable AR-400 hardened steel for greater wear life of bucket sides
  • High strength body made from T1 steel is three times stronger than standard steel
  • Rigid quality control during manufacturing ensures reliability
  • Heavy duty slewing bearing
  • Exclustive hydraulic cylinder lock valves efficiently hold material without needing to continuously apply auxiliary hydraulic pressure
  • Stress proof bolts are able to withstand tremendous amounts of flexing and fatigue long term
  • Interchangable edges allow the user to choose the best edge for the job
  • Excavator tooth bar is ideal for excavating or grabbing boulders and other large objects
  • Bolt-on reversible cutting edge offers flexibility of smooth or jagged edges
  • Electronic control valve option eliminates the need for expensive secondary auxiliary hydraulics on an excavator
  • Tough powder coat finish ensures long lasting durability and prevents rust

Specifications

Model CMPHG61 CMPHG111 CMPHG141 CMPHG202 CMPHG262 CMPHG403 CMPHG524
Machine Size 6,000 - 10,000 lbs 8,000 - 12,500 lbs 11,000 - 14,500 lbs 14,500 - 20,000 lbs 20,000 - 26,000 lbs 26,000 - 40,000 lbs 40,000 - 52,000 lbs
Width 14" 17" 23" 26" 28" 30" 34"
Bearing Size 12" 12" 12" 14" 17" 20" 24"
Pin Size 1.5" 1.5" 1.5" 1.5" 1.75" 2.25" 2.5"
Weight 350 lbs 550 lbs 700 lbs 990 lbs 1,500 lbs 2,200 lbs 3,200 lbs
Cylinder Bore 2" 2.5" 3" 3.5" 3.5" 4" 4"
Cylinder Rod 1.375" 1.5" 1.5" 2" 2" 2.5" 2.5"
Grapple Rotation 360° 360° 360° 360° 360° 360° 360°
Grapple Opening 42" 45" 55" 63" 67" 71" 85"
Dual Rotation Motors Standard Optional Optional Optional Standard Standard Standard

Download a printable brochure about CMP Attachments Hydra Grapple

The CMP Attachments Hydra Grapple Brochure is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

You will receive a shipment confirmation when your order has shipped and tracking information within 24-48 hours of shipment.

How do I return an item?

CMP Attachments accepts returns for exchange or refund 7 calendar days after delivery of the product. At their sole discretion after 7 calendar days, they will offer an exchange or store credit only.

Items must be in "new, unaltered and unused condition". Definition of new, unaltered and unused condition is:

  • Without showing signs of wear or damage in any way
  • Within 7 calendar days of the delivery date (after 7 days no returns are allowed)
  • Must not be a special order or a custom order
  • Unless noted that it cannot be returned or has a different return policy time period other than that 7 days noted in that item's particular item description

If an item is received damaged or is incorrectly shipped please contact CMP Attachments Customer Support immediately.

Items that are defective and shipped from CMP Attachments or items that you did not order but received will qualify for store credit or a cash refund. Refunds are contingent upon inspection of item(s) once received by CMP attachments.

There is a 15% restocking fee for returned items that are not being exchanged and are not damaged. Again you MUST contact CMP Attachments within 7 days if you intend to return ANY item. Items returned AFTER 7 days and WITHOUT contact will NOT be refunded. Customer is responsible for all shipping costs.
