EP 38 Ocean Racing PFD

MD6284

MAP $384.99

Mustang Survival MD6284 Ocean Racing Inflatable Vest is built with a revolutionary low profile chassis engineered for the elite ocean racer. Membrane Inflatable Technology™ inside reduces weight and increases flexibility, and the Hydrostatic Inflator Technology (HIT™) will only inflate when submerged and not in rain, spray or high humidity.

Discrete manual inflation handle prevents snags. Revolutionary low profile chassis is designed for maximum range of motion during high output grinding and sail changes. Back mounted, storable spray hood, integrated sailing harness with soft tie-in, lifting loop and integral storage for AIS, PLB's, strobes and other electronics keep you safe. The MD6284 PFD integrates seamlessly with the EP 6.5 Ocean Racing outerwear collection for a head-to-toe sailing solution providing performance edge in the harshest of conditions.

***Quantity pricing is available. Call Jay 763-263-9835 for details

Select Quantity
Re-Arm Kit B MA5283 (add $89.99)
Belt Extender adds 12" MA7637 (add $19.99)
Mustang Survival Gear brought to you by www.machovec.com

Features

  • Low profile, light weight chassis cut for active use 360° motion for high output grinding and sail changes
  • Hydrostatic Inflator Technology (HIT™) will only inflate when submerged in 4" or more of water, not in rain, spray or high humidity
  • When inflated the PFD provides 38 lbs buoyancy, more than double that of foam vests
  • Built with Membrane Inflatable Technology (MIT™) to reduce weight and flexibility
  • Low profile, lightweight chassis is tailored for active use
  • 360° motion for high output grinding and sail changes
  • Back mounted stowable high-vis spray hood (watch video below)
  • Wicking mesh back panel for reduced thermal burden
  • Discreet manual inflation handle prevents snags
  • Horizontally postitoned CO² cylinder enables unhindered forward bending
  • Marine grade retro-reflective materials on high-vis inflation cell
  • Integrated sailing harness with soft tie-in
  • Intuative dual side adjusters allows easy adjustments
  • Lifting loop
  • Removable crotch straps ensure the PFD stays securely in place when activated and store inside the back panel when not in use
  • Internal storage for IAS, PLB's, strobes or other electronics
  • Removable crotch strap
  • Marine grade safety whistle
  • ISAF race ready - in compliance with World Sailing, US Coast Guard and Transport Canada requirements
  • R-arm MA5283 Kit B

Approval: U.S.C.G. - UL1180 Inflatable PFD's 160.076 - Type V Commercial Use; Type II Recreational Use

SKU: 62533130036

Available Colors

MD6284 ep ocean racing inflatable pfd blackMD6284 ep ocean racing inflatable pfd ansi Black/ANSI

MD6284

MD6284 ep ocean racing inflatable pfd front

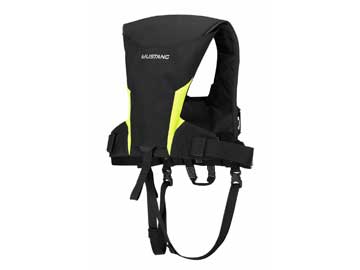

MD6284 ep ocean racing inflatable pfd back

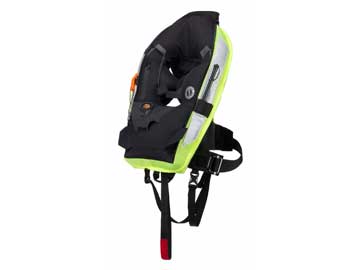

MD6284 ep ocean racing inflatable pfd inflated
Cell Inflated

Download Mustang Survival MD6284 EP Ocean Racing Inflatable PFD User Manual.

The MD6284 EP Ocean Racing Inflatable PFD User Manual is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Download Mustang Survival MD6284 EP Ocean Racing Inflatable PFD AIS Installation Manual.

The MD6284 EP Ocean Racing Inflatable PFD AIS Installation Manual is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Formula to Determine Buoyancy

If a man weighs 200 pounds on land, he only weighs 10 pounds in the water.

80% of the human body is water. Water in the body has no weight in the water.

200 pounds x 80% = 160 pounds
200 pounds – 160 pounds = 40 pounds

The human body is 15% fat, fat is lighter than water.

200 pounds x 15% = 30 pounds
40 pounds – 30 pounds = 10 pounds

A 200 pound person only weighs 10 pounds in the water.

A U.S.C.G. approved Type V vest is mandated to have 17.5 pounds of buoyancy.

If a man weighs 350 pounds on land, he only weighs:

80% of the human body is water. Water in the body has no weight in the water.

350 x 80% = 280 pounds
350 pounds – 280 pounds = 70 pounds

The human body is 15% fat, fat is lighter than water.

350 pounds x 15% = 52.5 pounds
70 pounds – 52.5 pounds = 17.5 pounds

A 350 pound person weighs 17.5 pounds in the water.

Type V PFD

In regards to using Work Vests or any other Life Jacket, the saying goes “It can only save your life if you’re wearing it.” Less obvious is what to expect upon entering the water once you take an unexpected fall. Depending on the height from which you fall, position of your body when entering the water, along with any currents present you may be kep under longer than you think. Type V Vests are required by United States Coast Guard to have a minimum buoyant force of 17 ½ pounds. This is adequate buoyancy to keep your head, neck and the top of your shoulders above the water. You will rise to the surface more quickly with more body fat and air pockets in your clothing. A lean and muscular person will rise more slowly to the surface.

A person of 200 lbs weighs 10 lbs in the water, 80% of a person’s weight is water which has no weight in the water, and about 15% is fat, which is lighter than water, consequently, the real weight of the person in water is about 10 pounds.

Having your Vest fit snugly is key to survival. Loose fitting or unbuckled Vests can slip over your head when falling feet first, allowing you to sink much further down. Hold on to your Vest as you enter the water just in case. Nothing is more important at that moment than getting your mouth above the top of the waves. Once in the water pull your Vest down to make sure all of the buoyancy is under the water. This will get your mouth and nose as high as possible. Most Vests have a strap that goes under your arms to keep your vest from riding up. If it is missing then replacement is recommended. Vests wear out over time and will lose some of their buoyancy. Here’s a quick way to check for the minimum buoyancy of 17 ½ pounds. Attach 20 pounds of steel weight to the Vest. Dumb bell weights work just fine. Twenty pounds of steel weight weighs approximately 17 ½ pounds in the water. If your Vest floats above or just below the surface, it still meets the minimum required buoyancy. If it sinks it should be replaced. The foam in your Vest will lose its buoyancy if it is compressed under weight or crammed in storage. It’s best to hang them or set them on a shelf when not in use.

Humans are land dwellers and need a little help in the water.

Mustang Survival Warranty and Repair Information

**Products not eligible for returns include: Re-Arm Kits, Custom Orders, Non Current and Non Stock Products, Discontinued Products and Inflatable PFD's purchased 6 months ago or longer.

The Mustang Survival Warranty and Repair information sheet is a pdf file. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

Catalogs

2019 Mustang Survival Product Guide
2019 Product Guide

2018 Mustang Survival Product Guide

2017 Mustang Survival Industrial and Commercial Catalog

2017 Mustang Survival Angler Catalog

2016 Mustang Survival Public safety Product Guide

2016 Public Safety Catalog

2016 Mustang Survival Military Product Guide

2016 Military Catalog

2016 Mustang Survival Product Guide

2016 Product Guide

2016 Mustang Survival Range Book

2016 Range Book

For hard copy catalogs contact us at 763-263-9835. To download, right click the image and select "Save Link As".

The catalogs are pdf files. If you are unable to open it you will need to download the latest FREE version of Adobe Acrobat Reader.

Get Adobe PDF reader FREE

California Proposition 65

Safe Water and Toxic Enforcement Act of 1986 – Warnings Required

WARNING: This Mustang Survival product can expose you to chemicals including Di-methyl formamide (DMF) and Antimony trioxide, which are known to the State of California to cause cancer and Perfluorooctanoic acid (PFOA) and Ethylene glycol (ingested), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

We appreciate your decision to purchase Mustang Survival products to provide the best on water experience. We take our job seriously! You may have noticed that our products now show a warning label at point of sale referring to carcinogens and birth defects. You may also have begun to see warnings related to carcinogenic substances or substances causing birth defects prominently displayed in hotel lobbies, hospitals, or other places of business recently. These warnings are required by the State of California, and we believe that an explanation of the California statute legislating the requirement will provide you valuable information regarding the relative risks of the chemicals that may be present in consumer products.

In 1986, the State of California passed the Safe Drinking Water and Toxic Enforcement Act; otherwise known as “Proposition 65” or "Prop 65". Prop 65 requires businesses like ours to disclose to individuals the presence of chemicals listed in the Act prior to point of sale. The regulations implementing this Act have been amended over time with the most recent updates will take effect on August 30, 2018. There are more than 900 chemicals on the Prop 65 Chemical List, including many chemicals that are found in components of a wide array of consumer goods or are used to manufacture components that make up consumer goods.

Prop 65 does not establish acceptable concentrations for any listed chemical; however, the agency which enforces it has established what is called "safe harbor" exposure levels for about one third of these chemicals below which warnings are not required. These "safe harbor" are established for listed carcinogens based on the quantity of the chemical that would result in one excess case of cancer in an exposed population of 100,000, assuming lifetime (70-year) exposure at the level in question. A similar process is used to establish safe harbor levels for listed reproductive toxicants. Additional information in plain language on safe harbor levels is available from the California Office of Environmental Health Hazard Assessment at http://oehha.ca.gov/Prop65/background/p65plain.html

At Mustang Survival, the safety of your on water experience is our highest priority. We go to great effort to select materials that offer superior value, quality, and durability while also being generally recognized as safe and reliable for the full life of the product. Mustang Survival also works closely with many regulatory bodies, such as the US Coast Guard and Underwriter’s Laboratories, to ensure the longevity of your on-water safety through targeted selection of durable, long lasting materials and components that undergo significant validation testing before being used to manufacture end items. Sometimes the safety promise we offer appears at odds with the health and safety requirements of other legislation in certain parts of the world when some regulations are updated ahead of others. To ensure compliance with applicable legal requirements, Mustang Survival has placed a warning on products that contain a Prop 65 listed chemical, either directly or as a part of the raw material supply chain. This allows us to comply with California law and provide our California consumers with the disclosure required by Prop 65, while still promising the safest on water experience possible.

Mustang Survival is working diligently with regulatory bodies and our own manufacturing partners to continue to improve our product performance and reduce the presence of less desirable chemicals. Water is a precious resource we all share that is important to the health and well-being of our planet and all people. Our goal is to continue to enhance your water life experience while reducing our overall impact to the planet and, in particular, its waterways. While it is a bit of a juggling act to achieve, we are confident you will see continued improvement in both the immediate and long term future. We hope this explanation will enable you to understand why you will be seeing warnings on some our products.

Thank you for your continued use of Mustang Survival products.
